Product Series: RMX Series 3U

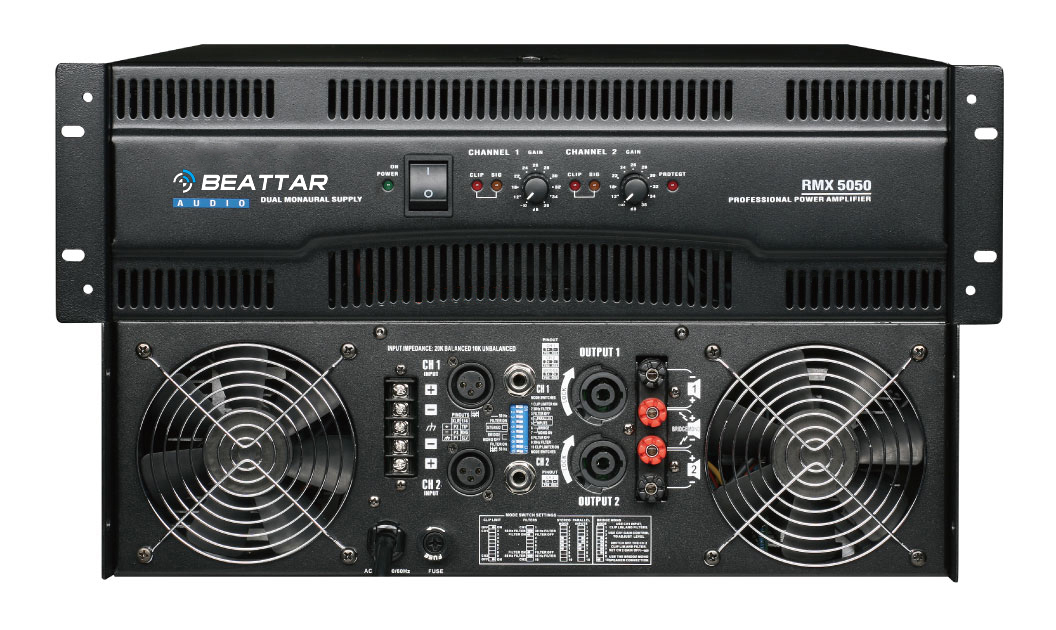

Product Name: RMX3050/4050/5050
Features:
Professional quality - a combination of proven design success.
• High-power current design improves power amplifier reliability and performance with lower noise.
• User-selectable clipping limiter reduces distortion.
• Optional low-frequency filter (30 Hz or 50 Hz) protects the speakers and increases power headroom.
• 1/4 "(6.3 mm) TRS balanced socket, XLR plug and bar terminal input.
• Terminals and Neutrik Speakon output terminals
• Front panel with individual gain controls for easy operation
• Signal and clip diode lights monitor the operating status of the amplifier.
• Independent DC power and overheat protection per channel automatically protects the amplifier and speakers.
| Model |
RMX3050 |
RMX4050 |
RMX5050 |
| Output Power 8Ω |
550W |
800W |
1000W |
| Output Power 4Ω |
1100W |
1700W |
1800W |
| Bridge Power 8Ω |
1300W |
2000W |
2400W |
| Frequency response |
20Hz~20KHz ±0.3dB |
| THD |
＜0.1% 8Ω 20Hz~20KHz |
| S/N Ratio |
20Hz~20KHz/＞100dB |
| Transient response |
30V/μS |
| Damping factor |
8Ω﹥300 |
| Crosstalk |
＞98dB@8Ω 1KHz |
| Input impedance |
20KΩ（Balanced)/10KΩ（Unbalanced) |
| Input sensitivity |
0.775/1.0/1.4 (V/8Ω) |
| Output circuitry |
Class H |
| Protection |
Over heat, Short circuit, DC safeguard, Over Loading, Boot-Strap Short Test |
