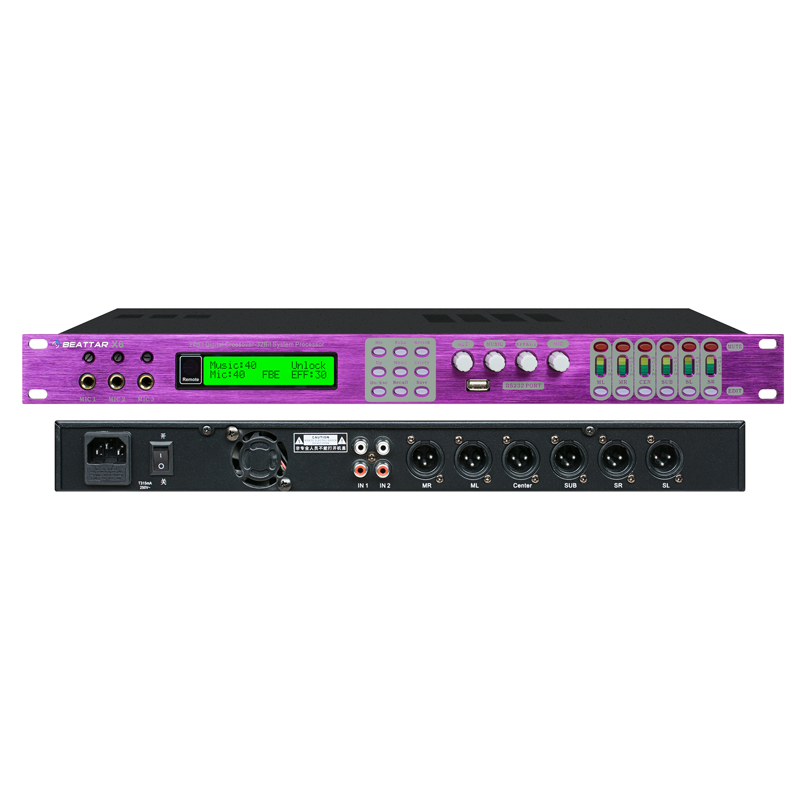

X5,X6

X5,X6

PRE-AMPLIFIER
◇ Karaoke Preamp with loudspeaker processing function, each function is adjustable independently
◇ Adopts 24Bit data bus and 32 Bit DSP
◇ 7 EQ for MUSIC input
◇ 15 EQ for MIC input
◇ 5 EQ for master output
◇ 3 EQ for central output, REAR output and BASS
◇ 3 levels feedback control for Mic, ON/OFF available
◇ Can save 16 modes
◇ Pressure limits and time delay function is valid for Mic output, Master output, CEN output, Bass output and Rear output

Max input level :4V (RMS)
Max output level :4V (RMS)
Music gain :MAX: 12dB
Microphone sensitivity :64mV (Out: 4V)
SNR :>80dB
Input voltage :-220V  50Hz
Dimension :483×218.5×47.5 mm
Net weight :3.5 kg
